Analog Joystick

Analog Joystick

Analog Joystick (37 Sensors kit) Description

A joystick made from two potentiometers at right angles to each other. Analog output in both x and y directions. Push knob down for momentary switch. Knob included with the module.

Also called: joystick, mini dual axis joystick, KY023.

Found in kits: 37 sensors, 45 sensors.

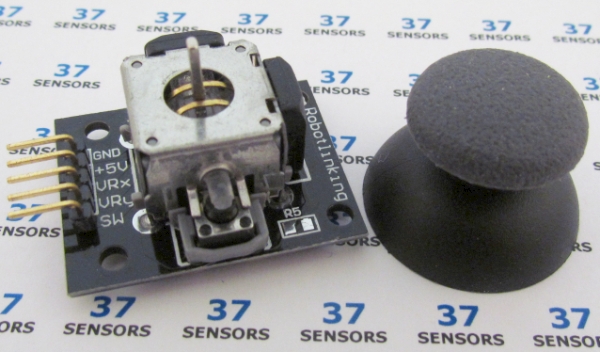

Module with knob separated from dual potentiometer joystick.

Analog Joystick Specification/Notes:

Voltage: 3.3V to 5.0V (No active components with voltage limits, so using other voltages are possible.)

LED: none

X Potentiometer: 10 k ohm, return-to-center (a few are 5 k ohm)

Y Potentiometer: 10 k ohm, return-to-center (a few are 5 k ohm)

Z switch: momentary SPST, pulled to +Voltage on some modules. Active low. Tactile.

Main component datasheet: 252_Series

Size: 25mm X 35mm

There are a number of different sources for these modules. Not every module that looks similar to the ones here behaves exactly the same. Check the specific module that you have for differences in function, voltage levels, pinout, and inactive/active states. Some modules have been found to have incorrectly labeled pins and even poorly soldered components.

Button press (Z switch) is a bit difficult to do without making a substantial change to the X and Y values with the pots centered, and impossible with the pots in some positions. Joystick X and Y output should be close to half of the supply voltage when the joystick handle is centered (at rest).

The unpopulated R5 on the module tested would be the location for the pull-up resistor for the button. If needed, this can be populated with a 10kohm 0805 SMT resistor.

Z-axis switch schematic.

Analog Joystick Module Pin-out:

Typical/common pinout. Always check the pinout for the module that you have.

Analog Joystick Test setup with CGMICROKIT1

To demonstrate how this works, a test setup that uses the CircuitGizmos CGMICROKIT1 (credit to Robert Severson) will be used. The CGMICROKIT1 has a microcontroller that connects to a PC via a USB/serial interface and runs an easy-to-understand yet powerful interpreted BASIC language (credit to Geoff Graham).

Yes, BASIC.

But this isn’t your 1980’s BASIC. This is a fantastic implementation of BASIC. No line numbers, made for easy understanding, and advanced microcontroller features.

This setup combines a CGMICROKIT1 with a single solderless breadboard, a USB/serial interface to the PC, and a suitable power supply for a convenient test bed for proving out small circuitry and experimenting with these 37+ sensors.

On the PC a program called MMEDIT  (credit to Jim Hiley) helps to make development easier by providing a platform for editing and downloading the code used for these examples. This development environment is simple, powerful, and flexible. Alternate interfaces on the PC are any serial terminal application, including GFXterm.  GFXterm (credit to Robert Rozee)

For more information about this test setup please see the information about the setup here: http://circuitgizmos.com/documentation/hardware-datasheets/cgmicrokit1-technical-information/cgmicrokit1-test-setup/

The hardware for the test setup is mounted on a small wooden base. The tested devices are added to this test setup with jumper wires.

Analog Joystick Test 1

Read of analog joystick with CGMICROKIT1, console display. This test uses two analog inputs to read the X and Y values, and a digital input to read the switch input every 200 milliseconds. The values for all three are printed out on the console.

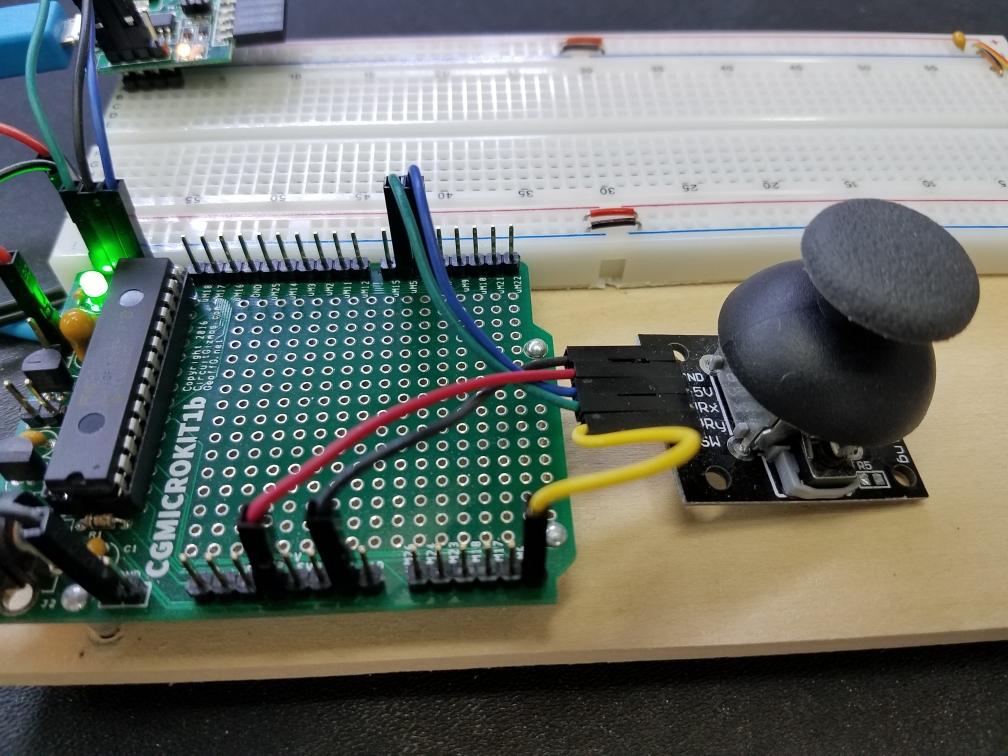

Analog Joystick Test 1 Wiring

CGMICROKIT1 to Analog Joystick.
  • Black wire – Common ground
    CGMICRIKIT GND ⇔ Module Ground
  • Red wire – Supply voltage
    CGMICRIKIT 3.3V ⇔ Module +Voltage
  • Blue wire – Variable resistance X direction
    CGMICRIKIT uM4 (analog input) ⇔ Module X
  • Green wire – Variable resistance Y direction
    CGMICRIKIT uM5 (analog input) ⇔ Module Y
  • Yellow wire – Joystick press switch
    CGMICRIKIT uM6 (digital input) ⇔ Module Switch

Analog Joystick Test 1 Code

MMbasic
1
2
3
4
5
6
7
8
9
10
11
SETPIN 6, DIN, PULLUP
SETPIN 4, AIN
SETPIN 5, AIN

DO
  PAUSE 200
  S = PIN(6)
  X = PIN(4)
  Y = PIN(5)
  PRINT S, X, Y
LOOP

Analog Joystick Test 1 Operation

Line 1-3: Set pin 6 to digital input with an internal pull-up resistor. Set pins 4 and 5 to analog input.

Line 5 and 11: Loop forever.

Line 6: Pause for 200 milliseconds.

Line 7: Read the switch input.

Line 8 and 9: Read the X and Y voltage values.

Line 10: Print the three values.

Analog Joystick Test 1 Output/Results

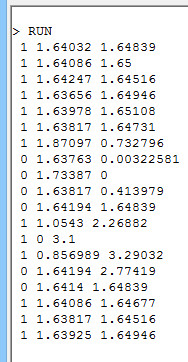

Console output.

The output shows about 4 seconds of button pushing, X, and Y values.

Analog Joystick Test setup with Sensor.Engine: MICRO (S.E:MICRO)

Analog Joystick Test 2

Read of analog joystick with Sensor.Engine:MICRO, console display. Test 1 was performed with a CGMICROKIT1. The same test can be performed with a Sensor.Engine: MICRO. Wiring described in Test 3.

Analog Joystick Test 3

Read of analog joystick with Sensor.Engine:MICRO, draw on display. This test uses two analog inputs to read the X and Y values displays the joystick position on the S.E:Micro display. Joystick switch press clears the display.

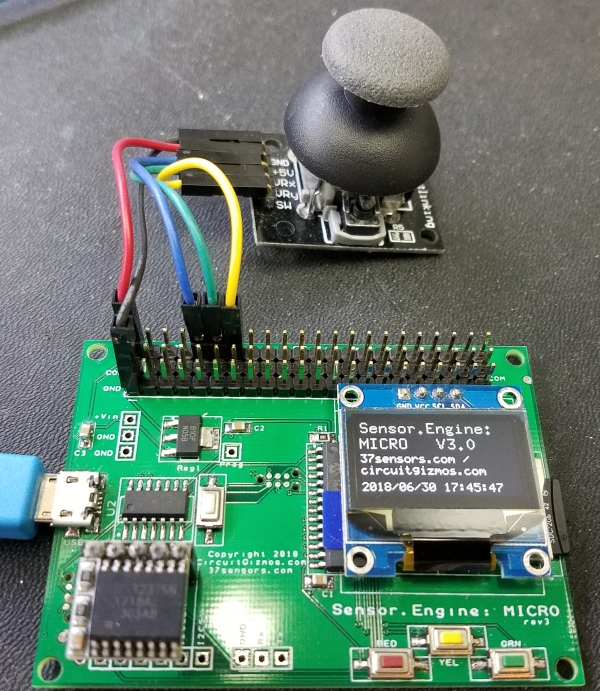

Analog Joystick Test 3 Wiring

Sensor.Engine:MICRO to Analog Joystick.
  • Black wire – Common ground
    Sensor.Engine:MICRO GND ⇔ Module Ground
  • Red wire – Supply voltage
    Sensor.Engine:MICRO 3.3V ⇔ Module +Voltage
  • Blue wire – Variable resistance X direction
    Sensor.Engine:MICRO P4 (analog input) ⇔ Module X
  • Green wire – Variable resistance Y direction
    Sensor.Engine:MICRO P5 (analog input) ⇔ Module Y
  • Yellow wire – Joystick press switch
    Sensor.Engine:MICRO P6 (digital input) ⇔ Module Switch

Analog Joystick Test 3 Code

MMbasic
1
2
3
4
5
6
7
8
9
10
11
SETPIN 6, DIN, PULLUP
SETPIN 4, AIN
SETPIN 5, AIN
CLS
DO
  S = PIN(6)
  IF S = 0 THEN CLS
  X = PIN(4)
  Y = PIN(5)
  PIXEL X*39, Y*20
LOOP

Analog Joystick Test 3 Operation

Line 1-3: Set pin 6 to digital input with an internal pull-up resistor. Set pins 4 and 5 to analog input.

Line 4: Clear screen initially.

Line 5 and 11: Loop forever.

Line 6: Read the switch input.

Line 7: If switch pressed (0), then clear display.

Line 8 and 9: Read the X and Y voltage values.

Line 10: Scale the values for the 128×64 display and plot the point.

Analog Joystick Test 3 Output/Results

The OLED display immediately displayed a dot in the center of the screen because the joystick was centered in both the X and Y direction. The joystick was moved up and down, then side to side to make the straight lines. Finally, the joystick was moved around randomly in the upper right quadrant.



If you have any additional information on this sensor/device or have comments, please leave a reply below.
